• The unit can be installed horizontally or vertically

• Burner is supplied with snorkel outlet to ensure clean combustion air through connection with external air aspiration duct

• The new heat exchanger combined with the new high-performance fans allow for heat output of 92 / 93%

• Before heating and after cooling of combustion chamber

• Combustion chamber inspection glass peephole

• Thermostat: FAN for fan control; LIMIT: for burner control; OVERHEATING: safety thermostat in case of overheating, with manual reset

• Panels with reinforcement cross fold to ensure higher rigidity and strength

• Bearing structure with removable panels for internal washing, even on hanging machines

• All installation inserts and screws are exclusively metric, not self-tapping

• Fan:

- in compliance with directive ERP 2015

- extremely low-noise fan (noise level less than 69 db at 1 meter)

- with 7 blades: high performance (air flow and static pressure) for uniform diffusion of warm air

- through the perforated duct

- insulation class IP55

- fan inlet to carry the air and ensure high static pressure

• Electric switchboard:

- can be connected to thermostat/humidistat/timer

- can be connected to a central control unit through wired terminal

• Each main component (fan, burner, electrical switchboard, thermostats, etc.) is supplied with quick couplings of electrical connections IP68:

 - quick assembly and disassembly and techncial interventions

-  elimination of installation and disassembly errors

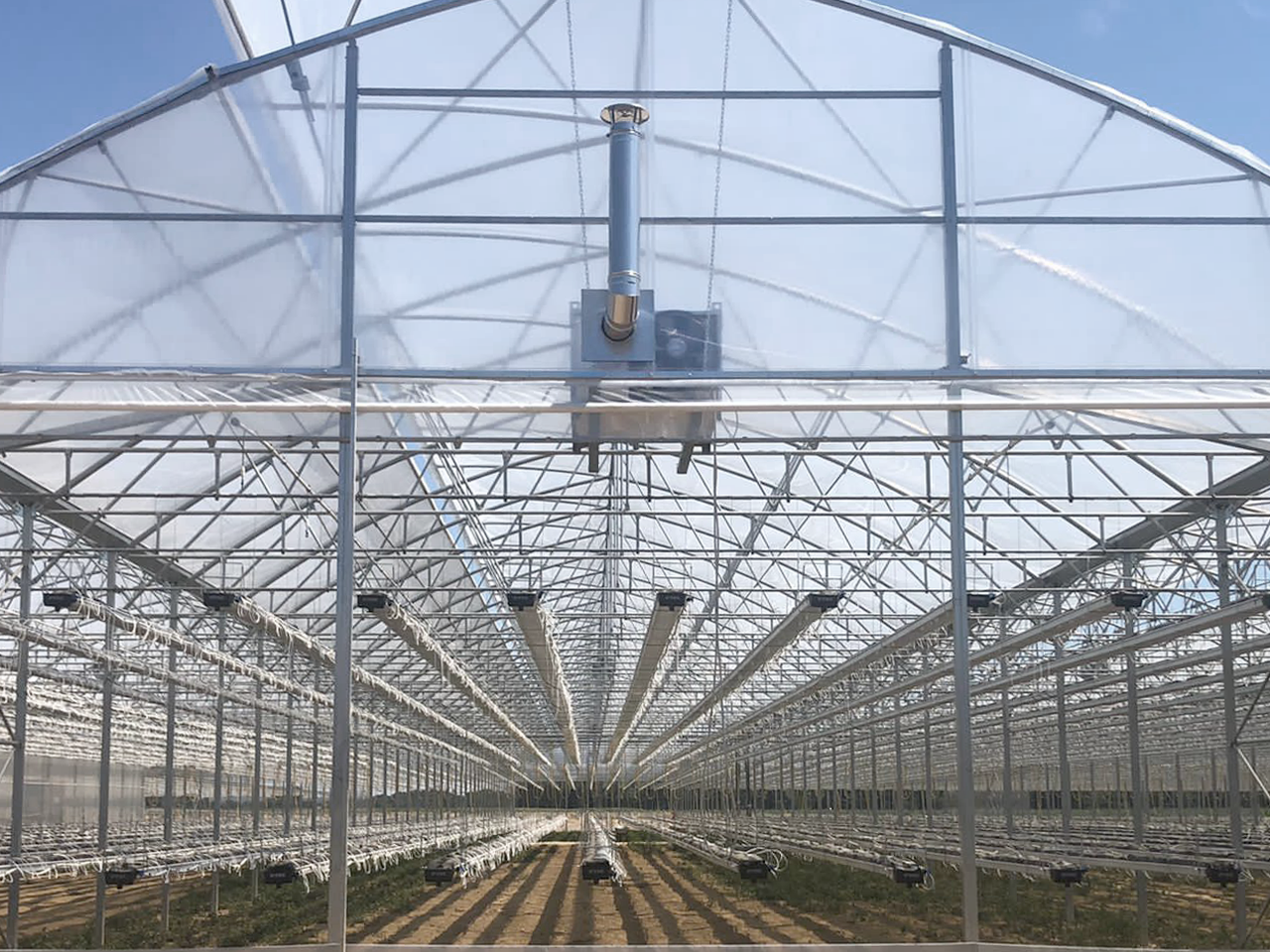

• Sturdy suspension hooks in stainless steel for ceiling installation and support feet in stainless steel for floor installation
